Understanding Gear Reducer "Speed Ratio" And "Torque" in One Article

In the industrial field, gear reducers serve as core components for the stable operation of various mechanical devices, from cranes lifting heavy loads to robots performing precise operations. This article delves into two crucial concepts of gear reducers: speed ratio and torque, which directly determine the performance of equipment.

Speed Ratio: The "Converter" of Speed and Force

The speed ratio, in simple terms, is the ratio of the input rotational speed to the output rotational speed of a gear reducer. For example, if a motor inputs 1,000 revolutions per minute (RPM) and the reducer has a speed ratio of 10:1, the output shaft speed will be 100 RPM. It acts as a "speed converter," effectively reducing high input speeds to the levels required by the equipment. On the premise that power remains basically unchanged, a decrease in speed means a corresponding increase in output torque—this is the core principle of how gear reducers achieve "speed reduction and torque amplification."

Different speed ratios suit different scenarios:

Heavy-duty lifting equipment requires high torque and low speed, so reducers with high speed ratios are preferred.

Light-duty conveyor belts and other applications that require moderate speed but moderate torque can use reducers with lower speed ratios.

EED Transmission offers diverse speed ratio options to meet the needs of complex working conditions.

Torque: The "Core Force" of Equipment Operation

Torque measures the rotational force of the output shaft. The greater the torque, the stronger the equipment's ability to overcome resistance and complete work, directly affecting its load-bearing capacity, starting performance, and impact resistance.

When selecting a gear reducer, rated torque (continuous output) and peak torque (short-term) are key parameters. Reasonably choosing a reducer with sufficient torque margin based on actual working conditions and potential impacts is the foundation for ensuring stable and reliable equipment operation.

EED's EDM series lifting drives, with their high torque output, are widely used in heavy-duty equipment such as overhead cranes and gantry cranes to ensure smooth and safe handling.

EED's precision planetary gear reducers excel in industries with strict space and force requirements, such as industrial robots, due to their high torque-to-volume ratio.

The "Synergistic Effect" of Speed Ratio and Torque: Key to Influencing Equipment Performance

Speed ratio and torque have a close "complementary" relationship: when input power remains constant, a larger speed ratio results in lower output speed but higher output torque, and vice versa. This reasonable matching is crucial for equipment performance:

Efficiency: Optimized matching allows the motor to operate in a high-efficiency range, improving the efficiency of the transmission system and reducing energy consumption.

Stability: Precise speed ratio conversion provides smooth torque output, reducing impact and vibration during equipment start-up, operation, and stop, thus enhancing operational stability.

Lifespan: Matching the speed ratio and torque to the working conditions can avoid overloading or underloading of the reducer, extending its service life and reducing maintenance costs.

Precision: In high-precision applications such as industrial robots and CNC machine tools, the control precision of the reducer's speed ratio and torque directly affects motion accuracy, serving as an important guarantee for achieving millisecond-level response and micron-level positioning.

EED: A Professional Provider of Speed Ratio and Torque Solutions

Facing the complex selection of speed ratios and torque, EED Transmission provides global customers with diverse, high-performance gear reducer products and customized solutions:

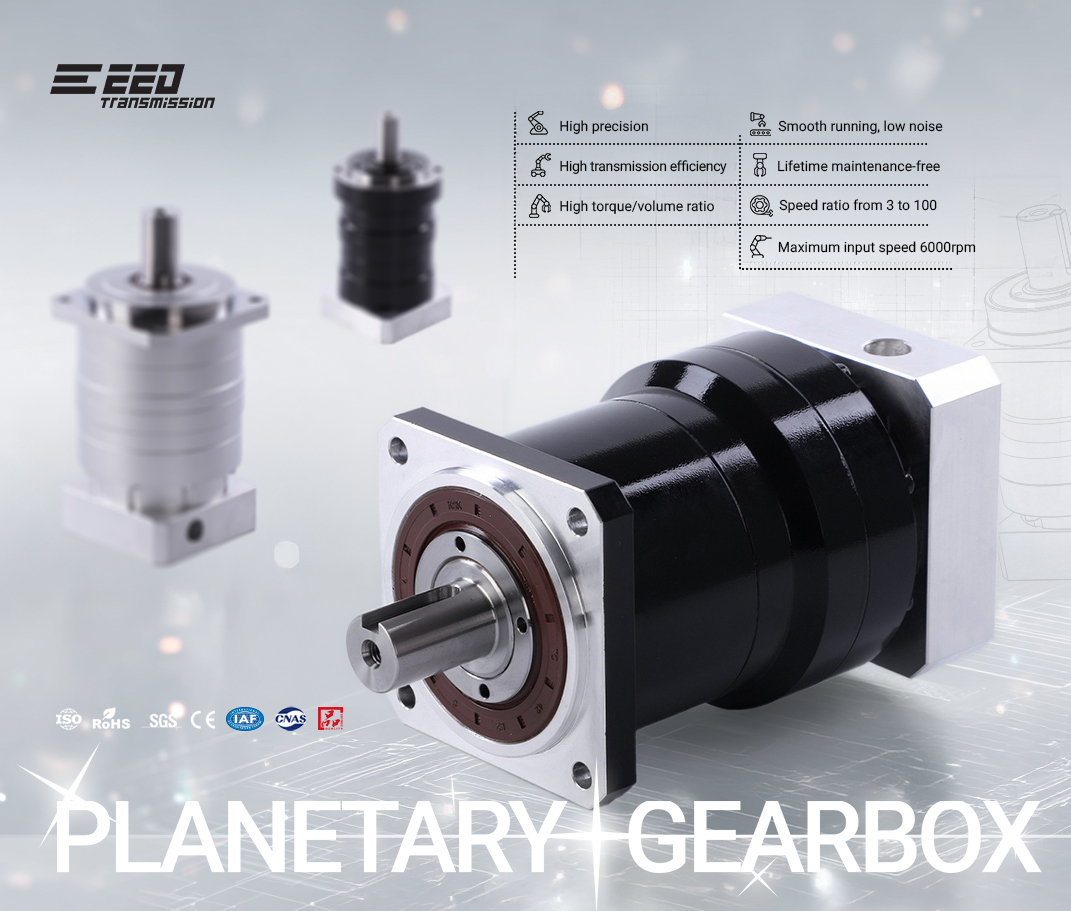

Precision Planetary Gear Reducer Series (EPB, EPT, etc.): With high precision and a high torque-to-volume ratio, they are suitable for applications such as industrial robots and CNC machine tools that require high positioning accuracy and torque output, ensuring stable and precise equipment operation.

Steering Wheel Series: Integrating drive motors, steering motors, and reducers, they are highly integrated, enabling intelligent logistics equipment such as AGVs/AMRs to achieve precise speed ratio control and strong torque output for flexible and efficient handling in tight spaces.

EDM Series Lifting Drives: Designed for the needs of lifting machinery, they provide ultra-large torque output and high load-bearing capacity, ensuring the stability and safety of heavy load handling in overhead cranes, gantry cranes, etc.

Worm Gear Reducer Series (E-RV, WP, etc.): Featuring high torque, smooth transmission, and low noise, they excel in handling, assembly, solar tracking, and other fields, especially in harsh environments.

Adhering to the concept of modular and optimized design, EED offers various combination methods to meet personalized customization needs. From material selection to manufacturing, every detail is pursued to ensure products have excellent qualities such as high precision, high efficiency, long lifespan, and lifelong maintenance-free operation. Choosing EED means choosing a reliable, efficient, and professional transmission partner.
