Performance Advantages and Application Scenarios of EED 's EB/VB Series Worm Gear Reducers

EED transmission is committed to providing high-quality, high-performance gear reducers to customers worldwide. Its star products, the EB/VB series worm gear reducers, boast unique innovations in design, craftsmanship, materials, and performance. These reducers not only inherit the inherent advantages of worm gear reducers but also achieve multiple innovative breakthroughs in design, process, and material selection.

The following is a detailed analysis of the core technical features of the EB/VB series.

Ingenious Design for Hassle-free Installation

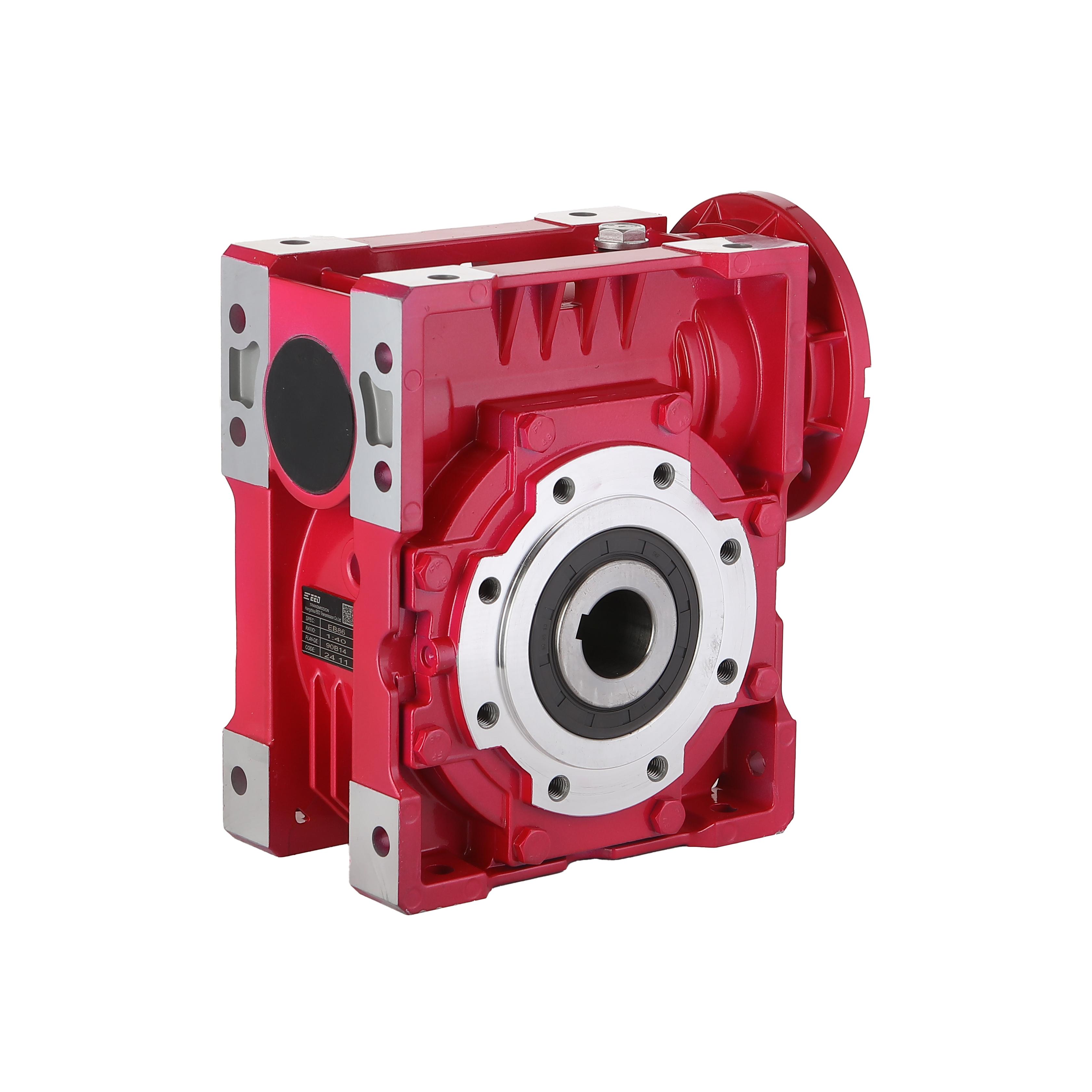

The EB/VB series gear reducers are designed with user-friendly installation and flexible usage in mind. They feature a symmetrical hollow shaft output design, allowing shafts to be inserted at both ends of the reducer. This significantly simplifies the installation process, especially in confined spaces or scenarios requiring multi-directional connections, effectively reducing installation time and difficulty.

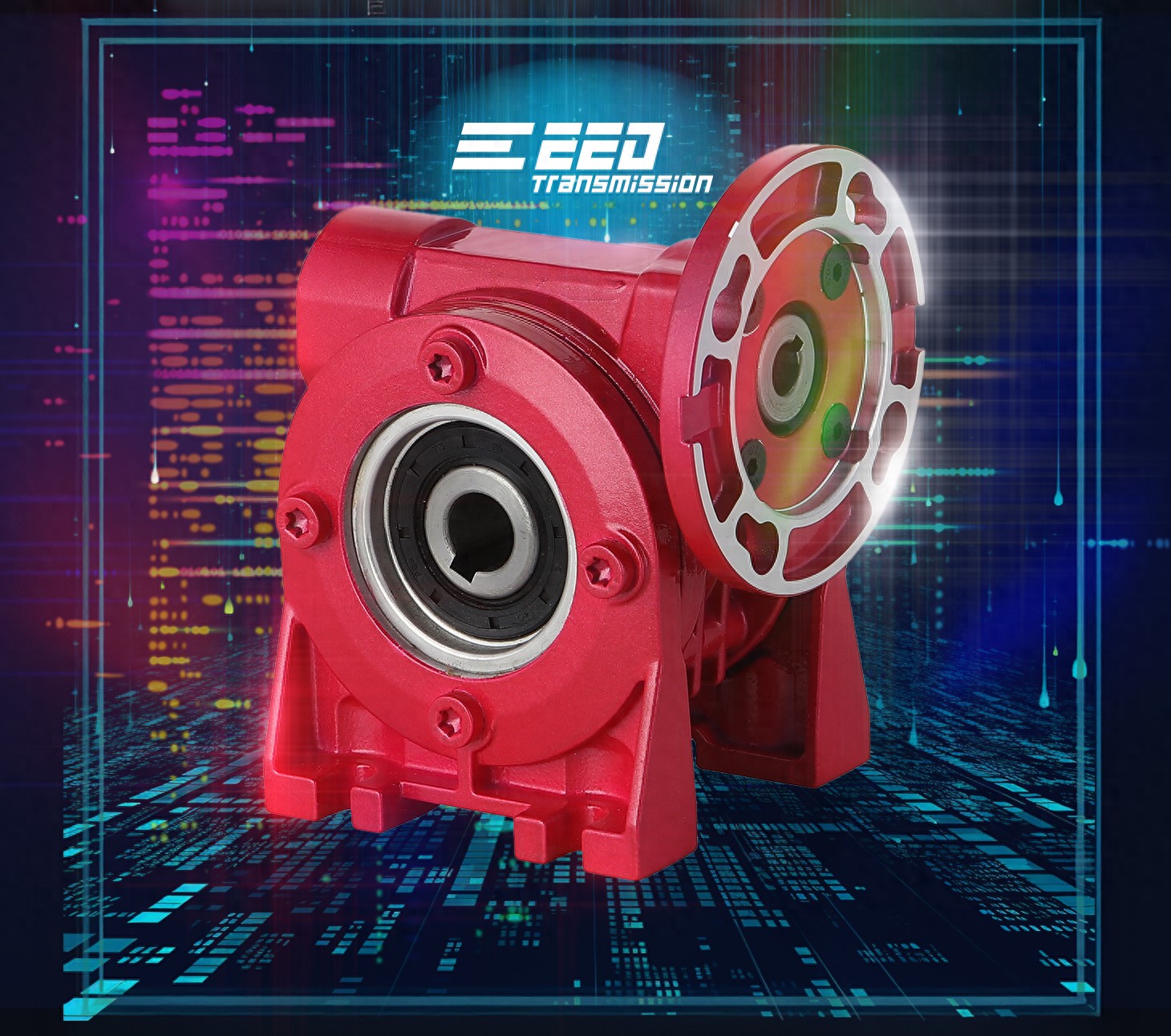

Moreover, the VB series showcases innovative design in base mounting. Traditional gear reducers often require end cover removal during installation, which is time-consuming and labor-intensive. In contrast, the VB series eliminates this cumbersome step, enabling easy installation from three directions without end cover disassembly. This design not only enhances installation efficiency but also reduces the risk of component damage caused by disassembly.

Additionally, the enclosed design of the base bracket is not merely an aesthetic consideration. Structurally, it ensures the overall rigidity of the gearbox, providing more reliable support for the reducer and effectively resisting external impacts and vibrations. It also minimizes dust ingress into crevices, making it ideal for environments with stringent requirements, such as the food industry, thereby ensuring long-term operational stability and safety.

Precision Craftsmanship for Quiet and Efficient Operation

Transmission efficiency and operating noise are key indicators for evaluating the performance of gear reducers. All worms in the EB/VB series undergo high-precision grinding processes, a crucial step that significantly improves the surface finish and geometric accuracy of the worms. This reduces the friction coefficient between tooth surfaces, effectively lowering energy loss and enhancing transmission efficiency.

Simultaneously, high-precision tooth meshing minimizes impact and vibration between gears, resulting in lower operating noise for the reducer. This meticulous attention to detail not only elevates product performance but also reflects EED's stringent quality control standards.

Robust yet Lightweight for Long-lasting Durability

As a core component of industrial equipment, the durability and reliability of gear reducers are of paramount importance. The EB/VB series excels in this regard. They utilize an aluminum integral gearbox, which offers higher specific strength and lighter weight compared to traditional cast iron housings.

This means that while maintaining or even improving structural strength, the overall weight of the reducer is significantly reduced, facilitating equipment handling, installation, and lightweight system design. More importantly, lightweight construction helps lower equipment operating energy consumption.

In terms of bearing support, the entire EB worm series employs tapered roller bearings at both the front and rear. Tapered roller bearings are renowned for their excellent radial and axial load-bearing capacities, effectively withstanding the complex forces generated during high-speed rotation and heavy-duty transmission of the worm. This significantly extends the service life of the entire unit.

Furthermore, EED adopts a unique lubrication design—installing oil seals outside the tapered roller bearings and using flowing oil for bearing lubrication. This ensures continuous and sufficient lubrication for the bearings, effectively reducing friction and wear, further prolonging bearing life, and lowering user maintenance costs and downtime.

Innovative Connection for Smooth and Reliable Transmission

The connection method of the input shaft directly impacts the transmission smoothness and reliability of the gear reducer. The EB series features a bold innovation in input shaft design, utilizing splined adapter shafts across the entire series. Compared to traditional flat key shaft connections, splined adapter shafts offer several significant advantages.

Firstly, splined connections enable uniform load distribution across multiple teeth, avoiding stress concentration issues associated with flat key connections. This reduces the variety of worms required, simplifying spare parts management.

Secondly, splined connections have smaller clearances and tighter meshing, effectively suppressing impact and vibration during transmission. This results in smoother transmission characteristics during startup, operation, and shutdown of the reducer. Such smoothness not only enhances equipment operational accuracy but also reduces noise, providing users with a superior experience.

Application Scenarios: Powering Diverse Industries

Due to their unique transmission characteristics, EED's EB/VB series worm gear reducers find widespread applications across various sectors of modern industry. The following outlines their primary application scenarios:

Industrial Automation

In automated production lines, gear reducers are essential components for achieving precise positioning and speed control. The high precision and stability of the EB/VB series make them the preferred choice for robotics, automated conveying equipment, packaging machinery, and other automated devices, ensuring smooth and efficient production processes.

Food Processing Machinery

The food industry imposes stringent requirements on equipment hygiene, stability, and noise levels. The EB/VB series, featuring an aluminum integral gearbox and lightweight design for easy cleaning, along with low-noise operation, are widely used in mixers, filling machines, packaging machines, and other food processing equipment.

Textile Machinery

Textile machinery demands high transmission accuracy and stability to ensure product quality. The smooth transmission characteristics of the EB/VB series effectively minimize vibration, enhancing the production accuracy and efficiency of textiles.

Printing Machinery

The printing process requires a high degree of synchronization and precise control. The EB/VB series provides accurate power transmission, ensuring printing quality and production efficiency.

Woodworking Machinery

In the wood processing sector, stable and reliable power is essential for sawing, carving, and sanding operations. The EB/VB series offers robust and smooth power support for woodworking machinery.

Glass Machinery

Glass production processes, such as cutting, grinding, and handling, require equipment with high stability and precision. The EB/VB series meets these specific requirements effectively.

High-voltage Switches and Fitness Equipment

Even in seemingly unrelated fields, such as the actuator mechanisms of high-voltage switches or the transmission components of fitness equipment, the EB/VB series provides high-quality power solutions with their compact, efficient, and reliable characteristics.

EED EB/VB Series: Your Wise Choice

The EED EB/VB series worm gear reducers are undoubtedly a wise choice in the field of industrial transmission. They not only integrate the inherent advantages of worm gear reducers, such as high reduction ratios and large torque output, but also elevate product performance to new heights through a series of innovative designs and exquisite craftsmanship.
