Automated Guided Vehicles (AGVs) have become the "efficiency backbone" in factories, warehouses, ports, and other scenarios, with the performance of AGV steering wheels directly determining the vehicle's motion precision, load capacity, and scene adaptability. This article deeply analyzes the core value, technical classifications, and selection logic of AGV steering wheels to help you accurately match requirements and unleash automation potential.
AGV Steering Wheels: Why Are They the "Soul Component" of AGVs?

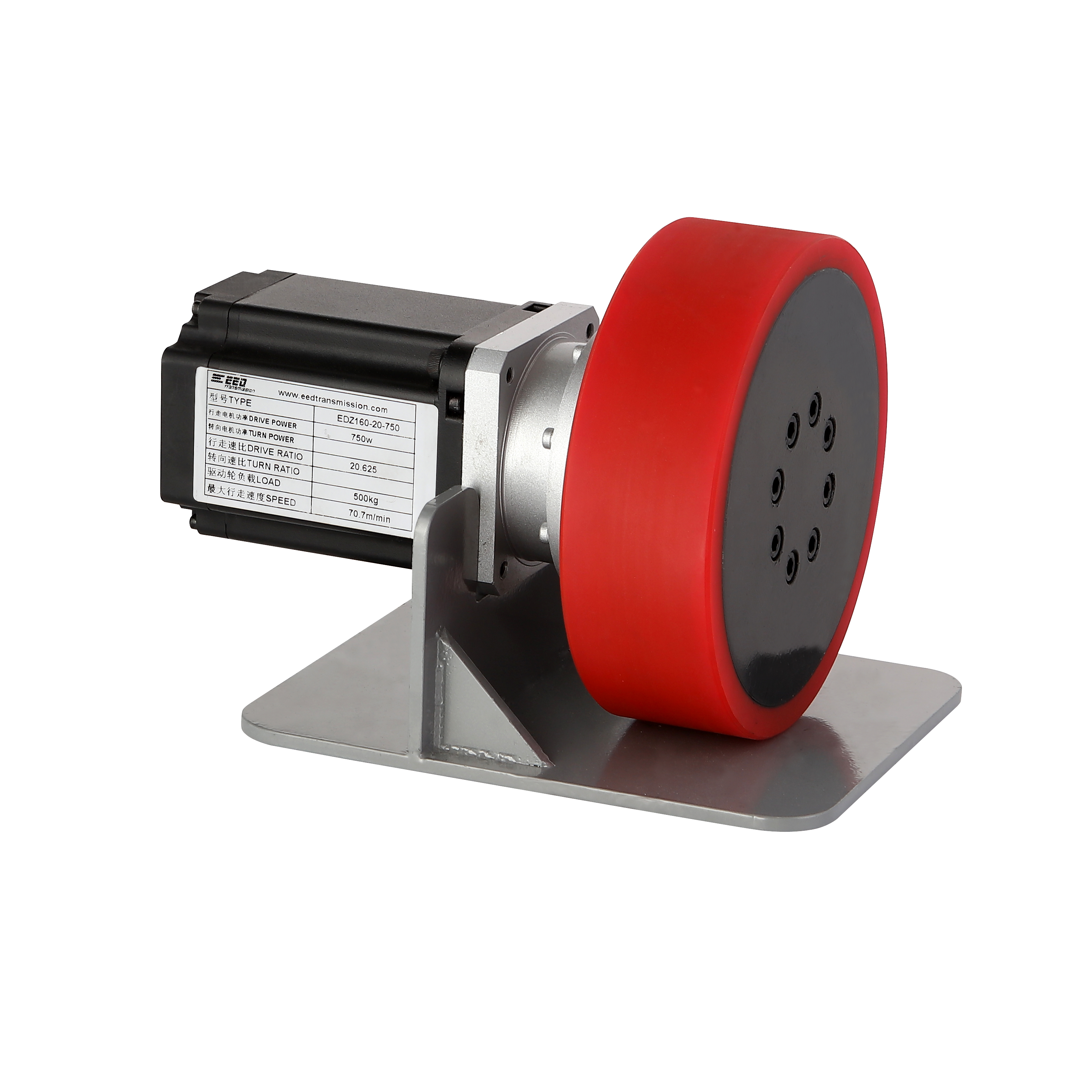

An AGV steering wheel is a modular mechanical system integrating driving, steering, and traction functions, with its importance reflected in three dimensions:
Motion Control Center
Through built-in high-precision servo motors and reducers, steering wheels independently achieve precise control of speed, direction, and torque. For example, the steering wheel system developed by Suzhou Phoenix Power, combined with the CANopen communication protocol, enables millimeter-level positioning accuracy and 0.1-second response speed, ensuring stable trajectory as AGVs navigate through dense shelves.
Balancer of Load and Efficiency
Steering wheels use a combination of high-power servo motors and planetary gear reducers, providing both multi-ton traction and dynamic torque adjustment for energy savings. Test data shows that AGVs with steering wheels reduce energy consumption by 18% and extend battery life by 30% under full load compared to traditional differential drives.
Breaker of Environmental Adaptability
Modular-designed steering wheels support quick replacement of components like polyurethane tires and anti-slip chains, adapting to extreme temperatures (-30°C to 60°C), humid, or dusty environments. A case study in an automotive factory shows that AGVs with steering wheels reduce skidding on oily surfaces by 72% compared to ordinary wheel sets.
Technical Deconstruction: Four Steering Wheel Types and Differentiated Competition
Based on driving and steering structure differences, AGV steering wheels fall into four technical rotes, each with unique application scenarios:
Type | Structural Features | Core Advantages | Typical Application Scenarios | Representative Cases |
Single Steering Wheel | Front-wheel drive + rear-wheel 从动 | Low cost, simple structure, strong grip | Towing AGVs, forklift AGVs | Port container handling |
Dual Steering Wheels | Front-rear dual steering wheels + lateral driven wheels | 360° in-situ rotation, omnidirectional traverse | Heavy-duty AGVs, parking robots | Automotive final assembly material delivery |
Differential Wheel | Left-right independent drive wheels + speed difference steering | Mature control algorithms, low cost | E-commerce warehouse 潜伏式 AGVs | Amazon KIVA robots |
Mecanum Wheel | Diagonal roller wheels + multi-wheel collaborative control | Omnidirectional movement, high space utilization | Precision electronics manufacturing, aerospace assembly | Aircraft component assembly lines |
Differentiated Comparison:
Precision & Flexibility: Dual steering wheels enable zero turning radius for narrow passages; Mecanum wheels support lateral movement but increase control complexity by 40%.
Load Capacity: Single steering wheels can bear up to 10 tons, while differential wheels are typically limited to under 1 ton.
Cost Structure: Dual steering wheel systems cost 35% more initially than single steering wheels but improve maintenance efficiency by 50%.
Selection Guide: From Scenario Requirements to Technical Matching
AGV steering wheel selection follows a three-step "needs-parameters-verification" approach:
Clarify Core Requirements
Load Type: Prioritize single/dual steering wheels for heavy loads (e.g., steel handling); consider differential wheels for light-duty rapid sorting.
Path Complexity: Dense shelf areas require dual steering wheels or Mecanum wheels; single steering wheels suffice for open spaces.
Environmental Adaptability: Outdoor or low-temperature environments need IP65-rated steering wheels; food industries require FDA-certified polyurethane tires.
Key Parameter Benchmarking
Repeat Positioning Accuracy: ≤±2mm for automated equipment docking; ±5mm is acceptable for general warehousing.
Climbing Capacity: ≥8% slope for workshop platform connections; 3% slope is enough for ordinary ground.
Operating Speed: ≥1.5m/s for high-speed handling (e.g., inter-workshop transport); ≤0.3m/s for precision assembly.
Field Verification & Expandability
Require suppliers to provide POC (Proof of Concept) testing, focusing on emergency stop stability and obstacle avoidance response.
Prioritize modular-upgradable steering wheel systems, such as Phoenix Power products compatible with laser navigation, QR code navigation, and other positioning technologies.
Future Trends: Intelligent Leaps in Steering Wheel Technology
With the integration of AIoT technologies, AGV steering wheels are moving towards three directions:
Self-Sensing & Self-Repair: Integrated vibration sensors and edge computing chips monitor wheel wear in real-time and trigger warnings.
Dynamic Load Optimization: Machine learning algorithms automatically adjust driving torque based on cargo weight to extend motor life.
Open Ecosystem Compatibility: Support for open-source frameworks like ROS and AutoWare reduces integration barriers with MES/WMS systems.
AGV steering wheels have evolved from single driving components to core carriers of intelligent mobile platforms. Whether in automotive factories pursuing extreme efficiency or 3C electronics workshops requiring flexible adaptation, choosing the right steering wheel technology will be critical to the success of automation projects. EED Transmission is a professional overall solution provider for AGV steering wheels, offering matching AGV steering wheels and scenario solutions for AGVs, AMRs, autonomous forklifts, and more.
