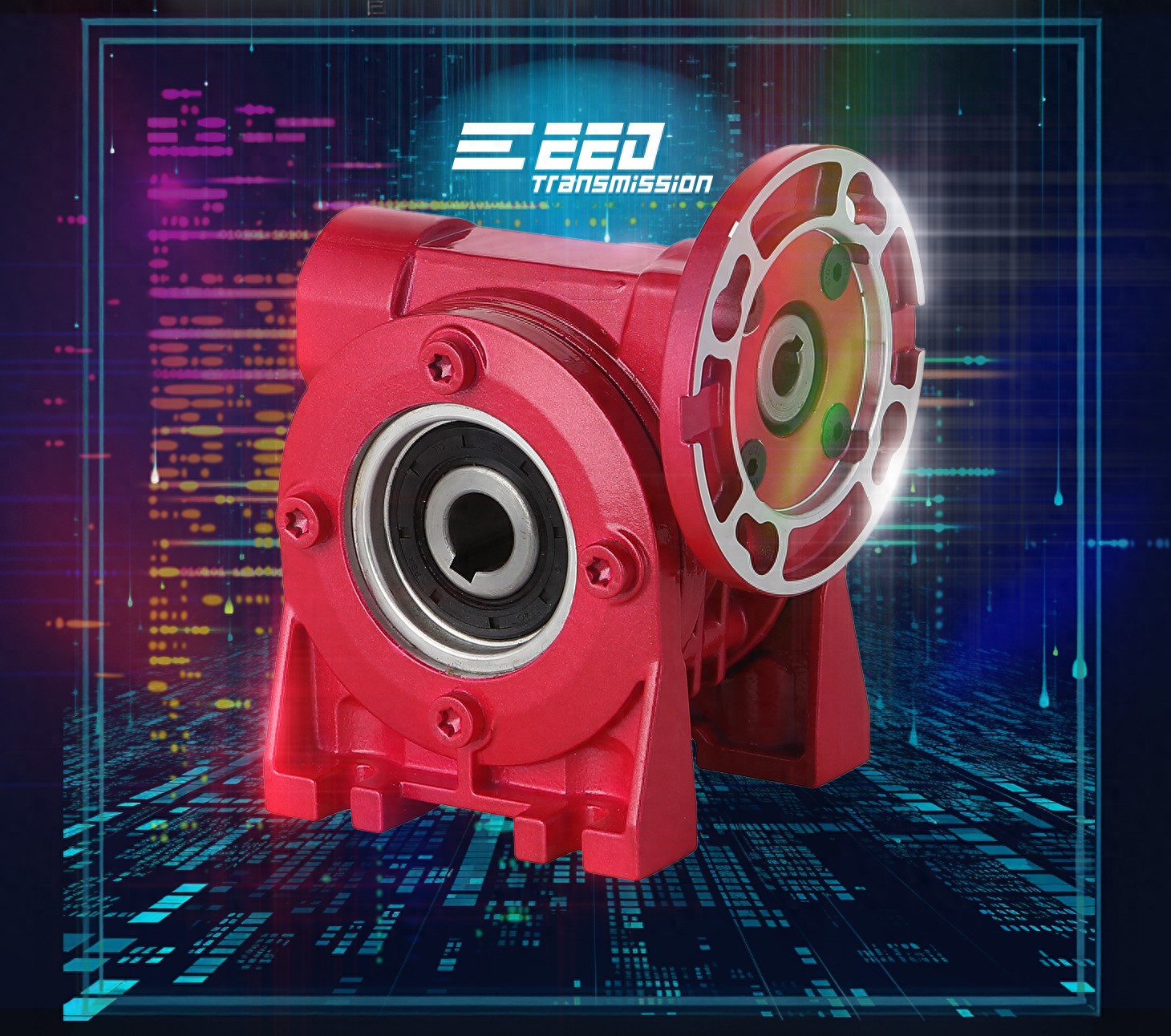

From automated production lines to heavy-duty machinery, and from precision instruments to logistics conveyor systems, worm gear reducers have become indispensable core components in numerous industrial applications due to their unique structural advantages and outstanding performance. They not only enable large speed ratio transmissions to effectively reduce output speed but also provide substantial torque to meet the demands of various high-load, low-speed operating conditions. Now, we will provide a detailed introduction to the star product of EED Transmission—the EB/VB series worm gear reducers—highlighting their innovations in design, craftsmanship, materials, and performance.
The EED EB/VB series worm gear reducers not only inherit the inherent advantages of worm gear reducers but also achieve multiple innovative breakthroughs in design, craftsmanship, and materials, aiming to offer users more efficient, stable, and convenient power transmission solutions.
Ingenious Design for Hassle-Free Installation
The EB/VB series reducers are meticulously designed with user convenience and flexibility in installation in mind. Their symmetrical hollow shaft output design allows for the insertion of shafts at both ends, significantly simplifying the installation process. This design advantage is particularly prominent in space-constrained or multi-directional connection scenarios, effectively reducing installation time and difficulty.

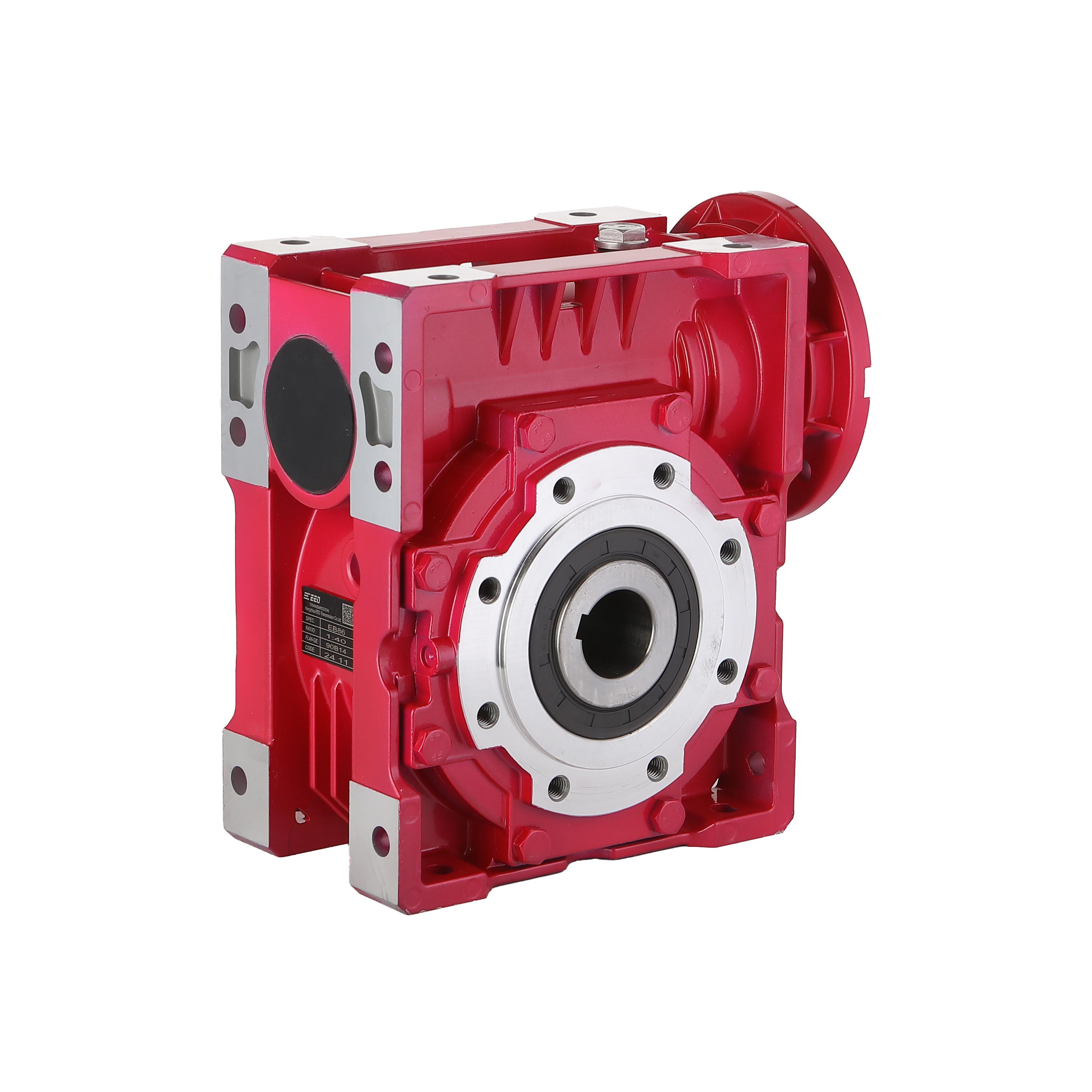

The VB series reducers demonstrate innovative design in foot mounting. Traditional reducers often require the removal of end covers during installation, which is time-consuming and labor-intensive. In contrast, the VB series cleverly avoids this cumbersome step, enabling easy installation from three directions without disassembling the end cover. This design not only improves installation efficiency but also reduces the risk of component damage caused by disassembly.
The wrapped design of the foot brackets is not merely an aesthetic consideration; it structurally ensures the overall rigidity of the gearbox, providing more reliable support for the reducer and effectively resisting external shocks and vibrations. Additionally, it minimizes dust ingress into the gaps, making it more suitable for environments with stringent requirements, such as the food industry, thereby ensuring the long-term stability and safety of the equipment.
Exquisite Craftsmanship for Quiet and Efficient Operation
Transmission efficiency and operating noise are key indicators for evaluating the performance of reducers. The EB/VB series reducers excel in worm manufacturing processes. All worms undergo high-precision grinding, a crucial step that significantly enhances the surface finish and geometric accuracy of the worms, reducing the friction coefficient between tooth surfaces. This, in turn, effectively lowers energy loss and improves transmission efficiency.
High-precision tooth meshing also minimizes the impact and vibration between gears, resulting in lower operating noise for the reducer and creating a quieter working environment for industrial production.
Robust yet Lightweight for Long-Lasting Durability
As a core component of industrial equipment, the durability and reliability of reducers are of paramount importance. The EB/VB series performs exceptionally well in this regard. Featuring an aluminum integral gearbox, these reducers utilize aluminum alloy, which offers higher specific strength and lighter weight compared to traditional cast iron housings. This means that while maintaining or even enhancing structural strength, the overall weight of the reducer is significantly reduced, which is beneficial for equipment handling, installation, and the lightweight design of the entire system.
More importantly, lightweight design helps reduce the operating energy consumption of the equipment. In terms of bearing support, the entire EB worm series employs conical bearings at both the front and rear ends. Conical bearings are renowned for their excellent radial and axial load-bearing capacities, effectively withstanding the complex forces generated during high-speed rotation and high-load transmission of the worm, thereby significantly extending the service life of the entire machine.
EED also adopts a unique lubrication design—the oil seal is installed outside the conical bearings, allowing the bearings to be continuously and adequately lubricated by flowing oil. This design effectively reduces friction and wear, further prolonging the bearing service life while reducing user maintenance costs and downtime.
Innovative Input Shaft Connection for Smooth and Reliable Operation
The input shaft connection method directly affects the transmission smoothness and reliability of the reducer. The EB series reducers feature an innovative input shaft design, utilizing splined adapter shafts across the entire series. Compared to traditional flat key shaft connections, splined adapter shafts offer several significant advantages.
Firstly, splined connections enable uniform force distribution across multiple teeth, avoiding the stress concentration issues associated with flat key connections, thereby reducing the variety of worms and simplifying spare parts management.
Secondly, splined connections have smaller clearances and tighter meshing, effectively suppressing impact and vibration during transmission, resulting in smoother transmission characteristics during startup, operation, and shutdown of the reducer. This smoothness not only enhances equipment operating accuracy but also reduces noise, providing users with a superior user experience.
In summary, the EED EB/VB series worm gear reducers are undoubtedly a wise choice in the field of industrial transmission. Their high-efficiency transmission performance translates to lower energy loss and higher production efficiency; their low-noise operation characteristics create a more comfortable working environment for operators and align with modern industrial pursuits of environmental protection and humanization; their long-service-life design significantly reduces equipment maintenance frequency and costs, ensuring continuous and stable operation of production lines; their easy installation feature greatly shortens equipment debugging time and improves production efficiency; and their smooth operation characteristics guarantee the precision and reliability of the transmission process, making them particularly suitable for applications with high precision requirements.
As a professional transmission solution provider, Hangzhou EED Transmission Equipment Co., Ltd. is not just a product manufacturer but also a trusted partner for customers. Choosing the EED EB/VB series means opting for an efficient, reliable, and worry-free power transmission solution.
Application Scenarios of the EB/VB Series Worm Gear Reducers
Due to their unique transmission characteristics, the EED EB/VB series worm gear reducers, with their outstanding performance and reliability, find widespread applications across various sectors of modern industry. The following are their main application scenarios:
Industrial Automation: The high precision and stability of EB/VB reducers make them the preferred choice for automation equipment such as robots, automated conveyor systems, and packaging machinery, ensuring smooth and efficient production processes.
Food Processing Machinery: The EB/VB series, featuring an aluminum integral gearbox and lightweight design for easy cleaning, along with low-noise operation, meets the demands of food production environments and is widely used in equipment such as mixers, filling machines, and packaging machines.
Textile Machinery: Textile machinery requires high transmission accuracy and stability to ensure the quality of textiles. The smooth transmission characteristics of the EB/VB series effectively reduce vibrations, improving the production accuracy and efficiency of textiles.
Printing Machinery: The printing process demands a high degree of synchronization and precise control. The EB/VB series provides accurate power transmission, ensuring printing quality and production efficiency.
Woodworking Machinery: In the wood processing sector, stable and reliable power is essential for operations such as sawing, carving, and sanding. The EB/VB series offers robust and smooth power support for woodworking machinery.
Glass Machinery: The cutting, grinding, and handling processes in glass production require equipment with stability and precision. The EB/VB series meets these special requirements.
High-Voltage Switchgear and Fitness Equipment: Even in seemingly unrelated fields, such as the actuating mechanisms of high-voltage switchgear or the transmission parts of fitness equipment, the EB/VB series can provide high-quality power solutions with their compact, efficient, and reliable characteristics.
The EED EB/VB series worm gear reducers, with their broad applicability and outstanding performance, are contributing to the transformation, upgrading, and efficient development of various industries.
