How Does EED's EB/VB Gear Reducers Achieve High Efficiency, Quiet Operation, And Long Service Life?

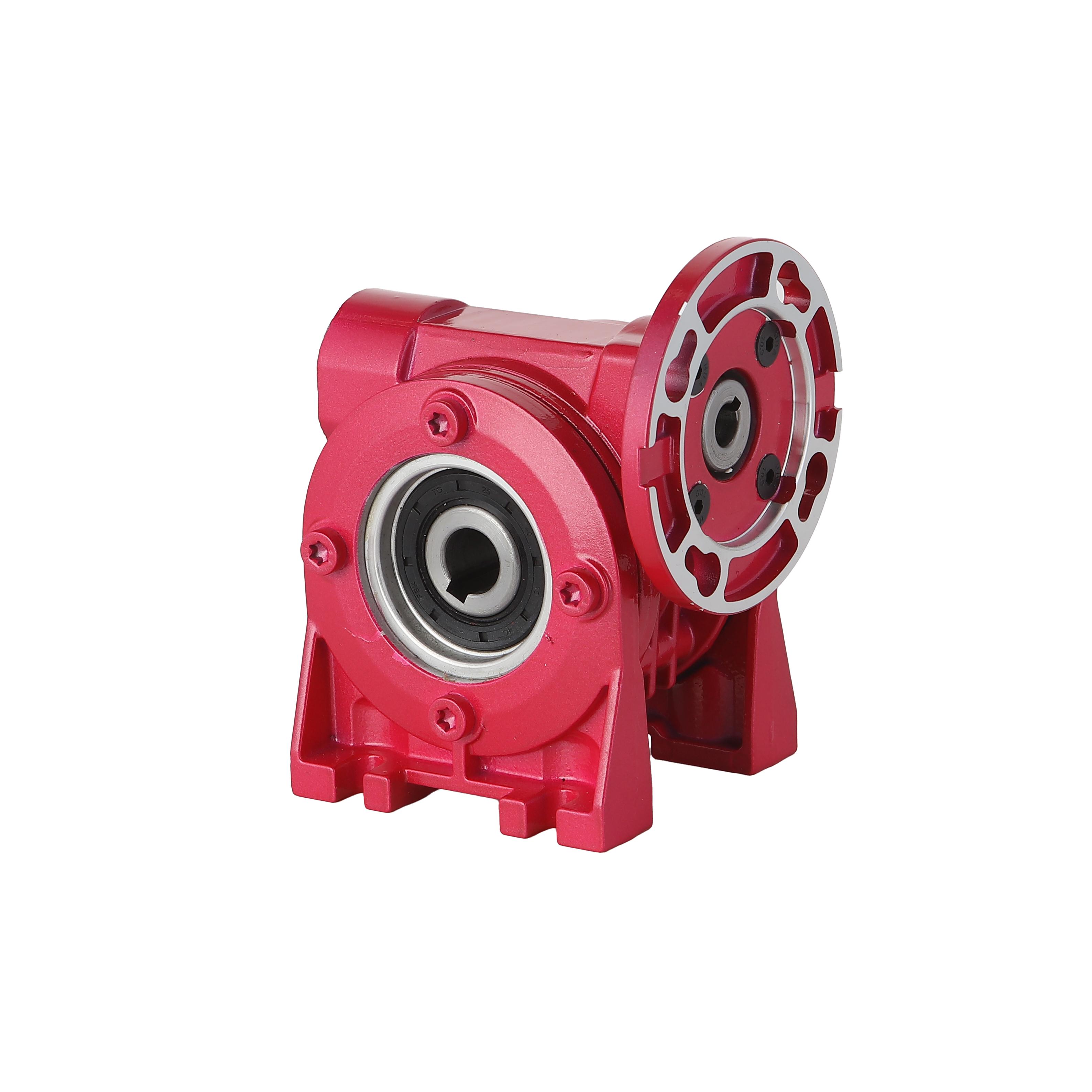

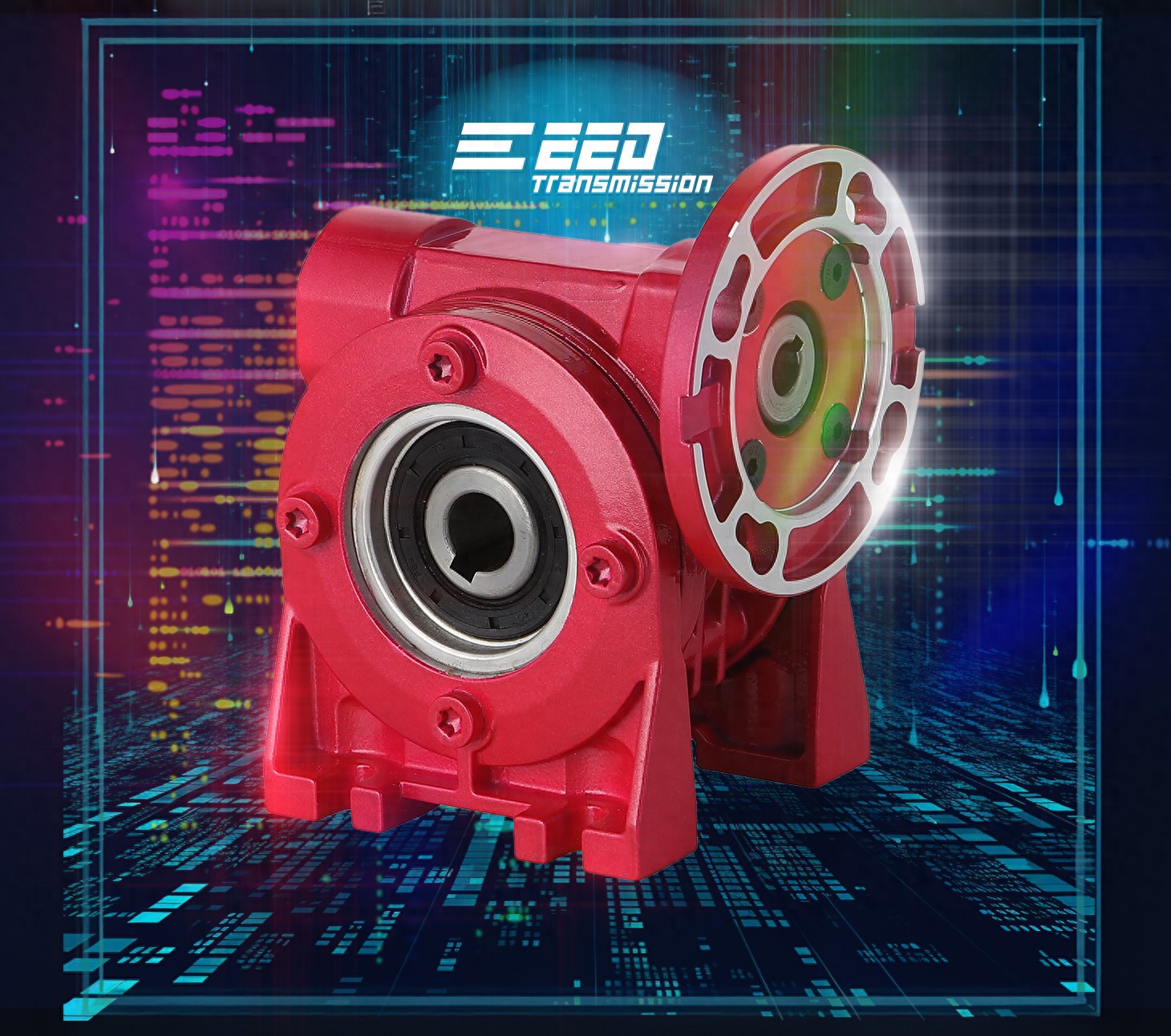

The EB/VB series worm gear reducers, meticulously crafted by EED Transmission, not only inherit the inherent advantages of worm gear reducers but also achieve multiple innovative breakthroughs in design, craftsmanship, and materials, providing users with more efficient, stable, and convenient power transmission solutions.

Ingenious Design, Hassle-Free Installation

The EB/VB series gear reducers are designed with user convenience and flexibility in mind. They feature a symmetrical hollow shaft output design, allowing for the insertion of shafts at both ends of the reducer. This significantly simplifies the installation process, especially in confined spaces or when multi-directional connections are required, effectively reducing installation time and difficulty.

The VB series gear reducers showcase innovative design in foot mounting. Traditional gear reducers often require the removal of end covers during installation, which is time-consuming and labor-intensive. In contrast, the VB series cleverly avoids this cumbersome step, enabling easy installation from three directions without the need to remove end covers. This design not only improves installation efficiency but also reduces the risk of component damage caused by disassembly.

The enclosed design of the foot bracket is not merely an aesthetic consideration; it structurally ensures the overall rigidity of the gearbox, providing more reliable support for the reducer and effectively resisting external impacts and vibrations. Additionally, it minimizes dust ingress into gaps, making it particularly suitable for environments with stringent requirements, such as the food industry, thereby ensuring the long-term stability and safety of the equipment.

Precision Craftsmanship, Quiet and Efficient Operation

Transmission efficiency and operational noise are key indicators for evaluating the performance of gear reducers. The EB/VB series gear reducers excel in this regard, with meticulous attention to worm manufacturing processes. All worms undergo high-precision grinding, a crucial step that significantly enhances the surface finish and geometric accuracy of the worms, reducing the friction coefficient between tooth surfaces. This effectively lowers energy loss, resulting in higher transmission efficiency.

High-precision tooth meshing also minimizes impact and vibration between gears, reducing operational noise and creating a quieter working environment for industrial production. This pursuit of perfection in detail not only enhances product performance but also reflects EED's stringent quality control.

Robust yet Lightweight, Durable Performance

As a core component of industrial equipment, the durability and reliability of gear reducers are of utmost importance. The EB/VB series excel in this aspect as well. They feature an aluminum integral gearbox, which, compared to traditional cast iron housings, offers higher specific strength and lighter weight. This means that while maintaining or even enhancing structural strength, the overall weight of the reducer is significantly reduced, facilitating equipment handling, installation, and lightweight design of the entire system. Lightweighting helps lower equipment operational energy consumption.

In terms of bearing support, the entire EB worm series employs tapered roller bearings at both the front and rear. Tapered roller bearings are renowned for their excellent radial and axial load-bearing capacity, effectively withstanding the complex forces generated during high-speed rotation and high-load transmission of the worm, thereby significantly extending the service life of the entire machine.

EED has also adopted a unique lubrication design—installing oil seals outside the tapered roller bearings and lubricating the bearings with flowing oil. This design ensures continuous and adequate lubrication for the bearings, effectively reducing friction and wear, further extending bearing life, and lowering user maintenance costs and downtime.

Innovative Connection, Smooth and Reliable Transmission

The connection method of the input shaft directly affects the transmission smoothness and reliability of the gear reducer. The EB series gear reducers feature bold innovations in input shaft design, utilizing spline adapter shafts across the entire series. Compared to traditional flat key shaft connections, spline adapter shafts offer several significant advantages.

Firstly, spline connections enable uniform force distribution across multiple teeth, avoiding stress concentration issues associated with flat key connections, thereby reducing the variety of worms and simplifying spare parts management.

Secondly, spline connections have smaller clearances and tighter meshing, effectively suppressing impact and vibration during transmission, resulting in smoother transmission characteristics during startup, operation, and shutdown. This smoothness not only enhances equipment operational accuracy but also reduces noise, providing users with a superior experience.

Applications: Powering Diverse Industries

Thanks to their unique transmission characteristics, EED's EB/VB series worm gear reducers find widespread applications across various modern industrial sectors.

Industrial Automation

In automated production lines, gear reducers are essential for precise positioning and speed control. The high precision and stability of the EB/VB series make them the preferred choice for automation equipment such as robots, automated conveyors, and packaging machinery, ensuring smooth and efficient production processes.

Food Processing Machinery

The food industry imposes stringent requirements on equipment hygiene, stability, and noise levels. The EB/VB series, featuring an aluminum integral gearbox and lightweight design, facilitates easy cleaning, while their quiet operation meets the demands of food production environments. They are widely used in mixers, fillers, and packaging machines.

Textile Machinery
Textile machinery requires high transmission accuracy and stability to ensure product quality. The smooth transmission characteristics of the EB/VB series effectively reduce vibrations, enhancing textile production accuracy and efficiency.

Printing Machinery
The printing process demands high synchronization and precise control. The EB/VB series provide accurate power transmission, ensuring printing quality and production efficiency.

Woodworking Machinery
In wood processing, sawing, engraving, and sanding operations require stable and reliable power. The EB/VB series offer robust and smooth power support for woodworking machinery.

Glass Machinery
Glass production processes, such as cutting, edging, and handling, require equipment stability and precision. The EB/VB series meet these special requirements.

High-Voltage Switches and Fitness Equipment
Even in seemingly unrelated fields, such as the actuators of high-voltage switches or the transmission components of fitness equipment, the EB/VB series provide high-quality power solutions with their compact, efficient, and reliable characteristics.
