Functions, Features, Application Scenarios, and Maintenance of Worm Gear Reducers

With its unique structural design and outstanding performance, the worm gear reducer provides precise and reliable power solutions for various industries.

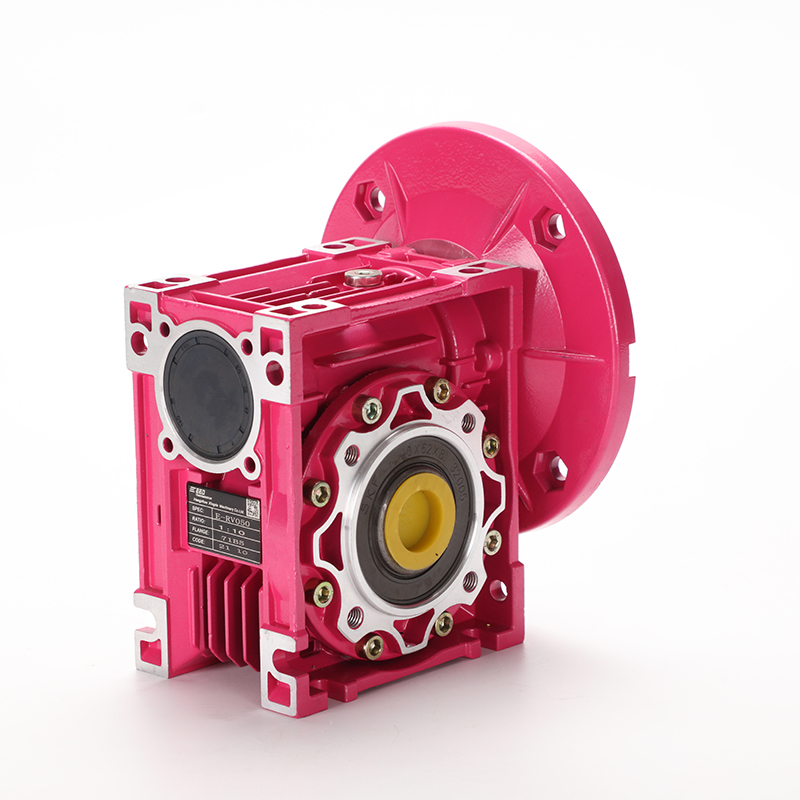

Functions & Performance: Precision Design-Driven Efficient Transmission

Through the meshing transmission of the worm gear and worm, the worm gear reducer converts high-speed rotation into low-speed, high-torque output. Its core functions are reflected in three key dimensions:

Precise Transmission Ratio: The helix angle design of the worm gear and worm enables a high-precision transmission ratio (typically 5:1 to 80:1) with an error rate of less than 0.5%, ensuring the synchronization of equipment operation.

Reverse Self-Locking: When the worm drives the worm gear, the worm gear cannot drive the worm in reverse. This feature makes it an ideal choice for scenarios requiring anti-reversal protection, such as cranes and elevators.

Compact Structure: It has a short axial dimension and strong radial load-bearing capacity, enabling high-torque transmission in limited spaces. Its volume is reduced by more than 30% compared to gear reducers.

In terms of performance, it is made of high-strength alloy steel and undergoes carburizing and quenching treatment, resulting in a tooth surface hardness of HRC 58-62 and a 5-fold improvement in wear resistance. Combined with precision grinding technology, the meshing noise is below 65 dB, ensuring smooth operation.

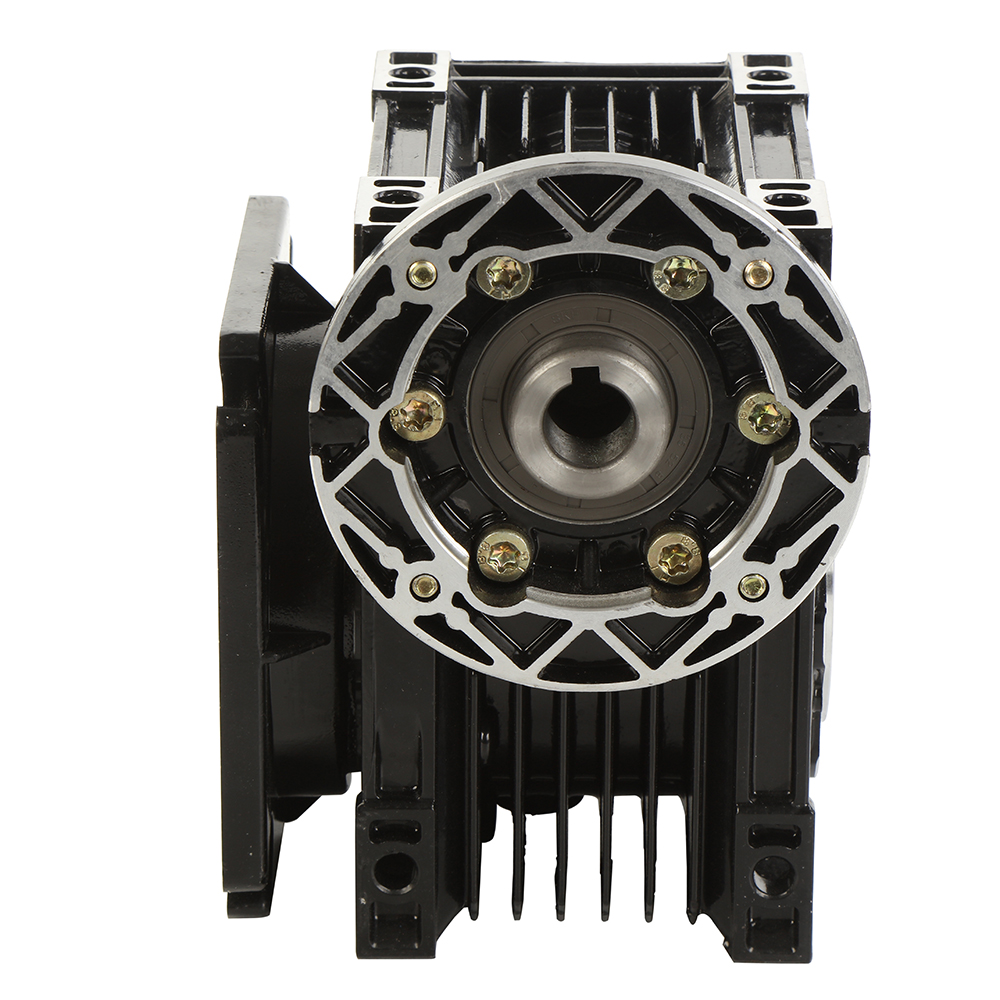

Core Features: Three Advantages Redefining Transmission Experience

Adaptive Lubrication System: The built-in oil circuit circulation design ensures a continuous oil film forms on the gear meshing surface, reducing friction loss by 30% and extending service life.

Modular Design: It supports customization of parameters such as input/output shaft direction, flange size, and reduction ratio. Model switching can be completed in 15 minutes, adapting to over 90% of industrial scenarios.

Intelligent Monitoring Interface: Reserved interfaces for temperature and vibration sensors allow integration with IoT systems, enabling remote condition monitoring and predictive maintenance.

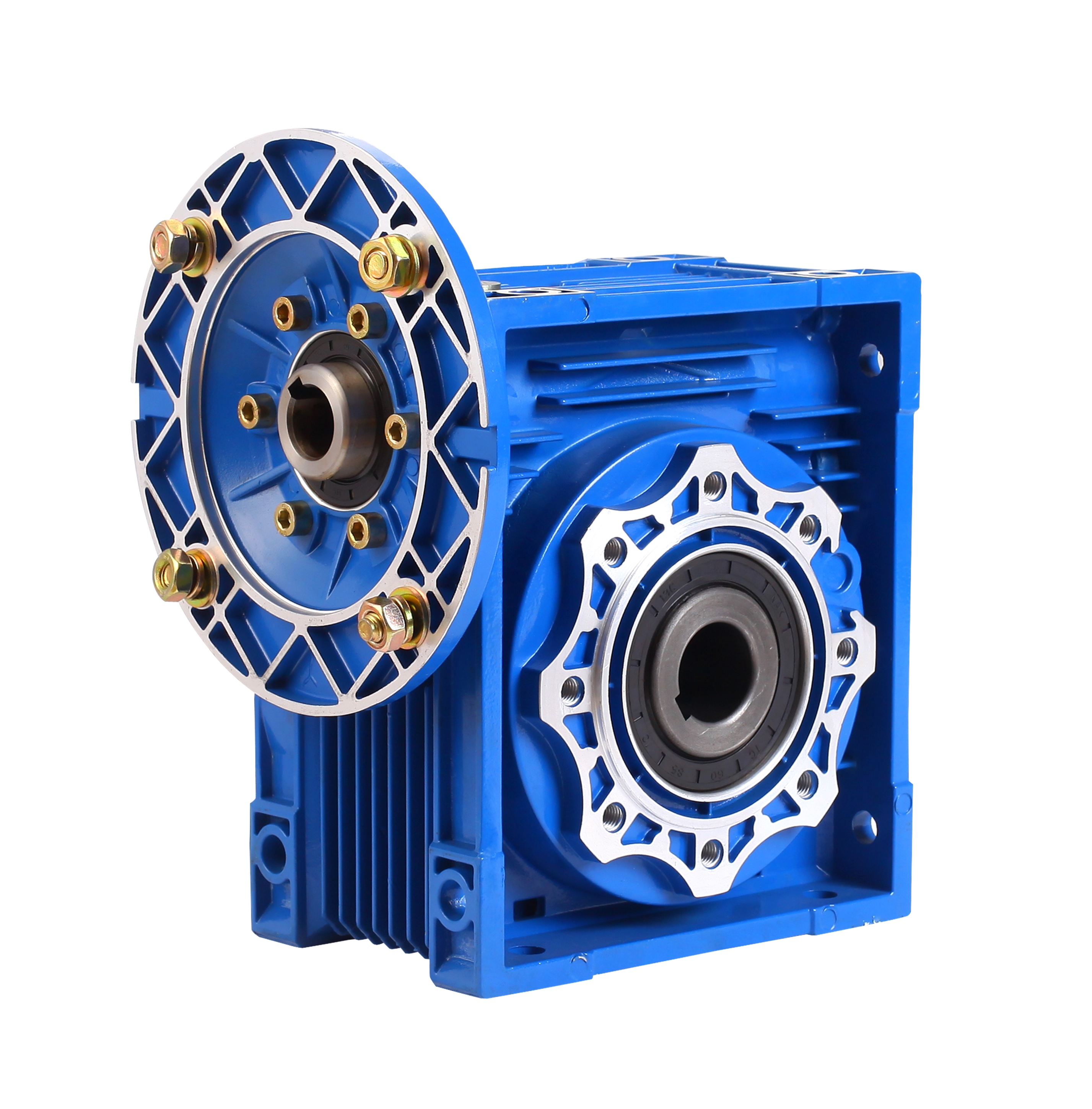

Application Scenarios: Full Coverage from Traditional Manufacturing to Smart Factories

Manufacturing Industry

CNC Machine Tools: Provides stable low-speed power for spindles, ensuring machining accuracy of ±0.01 mm.

Packaging Machinery: Drives conveyor belts and sealing machines to achieve high-frequency operations of 200 cycles per minute.

Injection Molding Machines: Withstands the instantaneous impact force of mold opening and closing, boasting a service life of over 5 million cycles.

Logistics Industry

Automated Stereoscopic Warehouses: Drives the horizontal/vertical movement of stackers, achieving a positioning accuracy of ±2 mm.

AGV Carts: Enables constant-speed cruising of 0.1 m/s through the reducer, increasing battery life by 40%.

New Energy Sector

Wind Power Generation: Realizes 360° stepless rotation in the yaw system, with wind resistance up to Level 12.

PV Tracking Brackets: Drives single-axis/dual-axis tracking systems, improving power generation efficiency by 25%.

Special Environments

Food Machinery: Made of 304 stainless steel, certified with IP65 protection, and adaptable to a temperature range of -20℃ to 80℃.

Mining Equipment: Equipped with a dust-proof sealing structure, enabling continuous operation in environments with dust concentration ≤ 500 mg/m³.

Maintenance: Five Steps to Extend Equipment Lifespan

Lubrication Management

Replace industrial gear oil every 2000 hours, and maintain the oil level at the middle line of the oil gauge.

Mixing lubricating oils of different brands is strictly prohibited to avoid chemical corrosion.

Temperature Monitoring

Control the operating temperature within -10℃ to 60℃; shut down for inspection if the temperature exceeds 80℃.

It is recommended to install cooling fans in summer to reduce the risk of thermal attenuation.

Regular Inspection

Inspect the wear of the worm gear tooth surface every 5000 hours; replace the gear if the tooth thickness reduction exceeds 15% of the original thickness.

Clean dust from the breather valve to prevent oil leakage caused by abnormal pressure.

Alignment Correction

Ensure the coaxiality of the input/output shafts is ≤ 0.1 mm and the angle deviation is ≤ 0.5° during installation.

Use a laser aligner for dynamic calibration to reduce vibration and noise.

Storage Specifications

When stored for a long time, apply anti-rust oil and store vertically to avoid tooth surface deformation.

Manually rotate the shaft 2-3 times monthly to prevent grease solidification.

Customer Testimonials: Real Cases of Efficiency Improvement and Cost Optimization

Case 1: Automotive Production Line Transformation

After a car manufacturer’s welding workshop introduced worm gear reducers, the robot picking cycle was reduced from 8 seconds per unit to 6 seconds per unit, annual production capacity increased by 120,000 units, and equipment failure rate decreased by 75%.

Case 2: Cold Chain Logistics Upgrade

After a cold storage enterprise adopted low-temperature-resistant worm gear reducers, the conveyor line operated continuously for 3 years without failures in -25℃ environments, energy consumption decreased by 18%, and maintenance costs reduced by 60%.

Case 3: Environmental Protection Equipment Innovation

After a sewage treatment plant used self-locking reducers, the operating stability of the sludge scraper was improved, reducing shutdowns for maintenance by 12 times per year and directly saving 230,000 yuan in operation and maintenance costs.

Three Reasons to Choose EED Transmission

Quality Commitment: Certified to ISO 9001, with 100% testing and inspection for each piece of equipment before delivery.

Service Network: A global sales and service network providing "express response" service with 2-hour turnaround.

Customization Capability: A team of over 50 engineers can complete non-standard design within 7 days and deliver prototypes within 30 days.

Make Transmission Simpler, Make Efficiency More Visible

The worm gear reducer is not only the power hub of mechanical equipment but also an invisible partner for enterprises to reduce costs and improve efficiency. From precision manufacturing to intelligent logistics, from traditional industry to the new energy track, EED Transmission redefines transmission standards with innovative technology. Consult now to obtain a customized reducer transmission solution.
