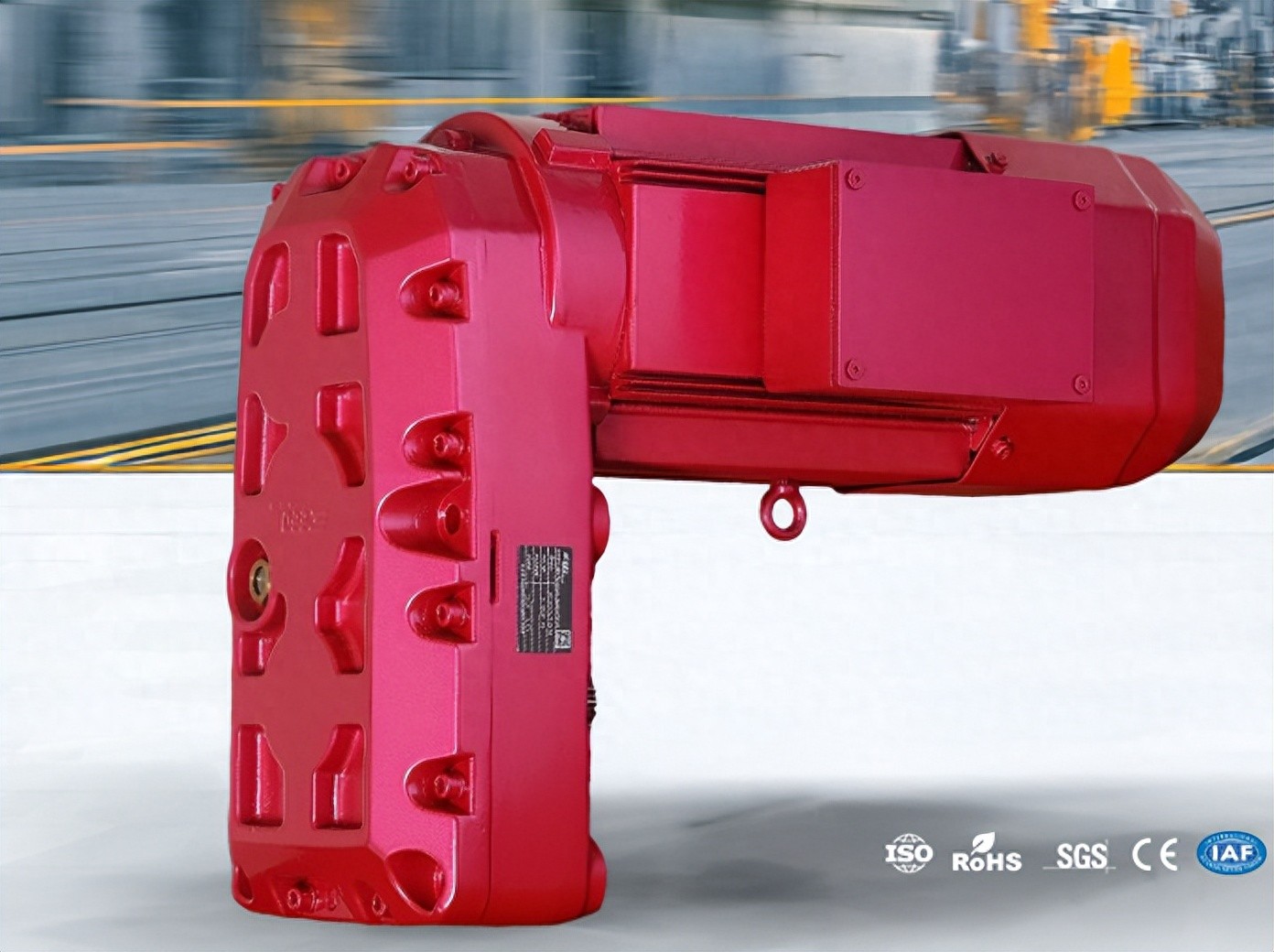

EED EDM series special hoisting gear motors are wire rope hoisting drive devices, adopting an advanced mechatronics design. The hoisting gear motor features a reasonable and compact structure, as well as light weight. It boasts a series of advantages such as large load-carrying capacity, long service life, and an attractive appearance.
Structural Features of the Motor Body
(1)Adopting a hard-tooth-surface helical gear design, the overall efficiency is higher than 94%.
(2)Using a spline output structure, it delivers large output torque and ensures more stable gear loading.
(3)The casing is made of cast aluminum alloy, which is aesthetically pleasing, durable, small in size, light in weight, and highly corrosion-resistant.
(4)High heat dissipation efficiency.
(5)Stable transmission and low operating noise.
(6) When viewed from the direction facing the output shaft, the reducer can be installed at any angle from 0° to 90°.
Features of the Hoisting Gear Motor
It uses an aluminum alloy housing and a heavy-duty bearing design, characterized by small size, light weight, and impact resistance. It is suitable for working conditions with high start-stop frequencies. It has low starting current, large starting torque, stable operation, and excellent static and dynamic starting performance. The soft acceleration is smooth, resulting in low wear.
(1) Double-sided Friction Safety Brake
It has a fast response, long durability, and low maintenance frequency. In case of power loss, the brake automatically engages.
(2) Surface Coating of the Hoisting Gear Motor
The body is first subjected to shot blasting, then undergoes special anti-corrosion treatment.
After phosphating, it is painted with coating.
Application Fields of EED EDM
EED EDM hoisting drive devices, with their outstanding technical characteristics, demonstrate strong adaptability and application potential in multiple industrial fields, providing efficient, precise, and safe hoisting solutions for customers in different industries.
Precision Manufacturing Field
In precision manufacturing fields such as the highly precise adjustment of molds for stamping machines and injection molding machines, the requirements for hoisting drive devices are extremely strict.
(1) High Dynamic Response: The mold can be quickly lifted to the specified position through the high-speed rotation of the motor.
(2) High-Precision Adjustment: Through the low-speed rotation and rapid inching of the motor, the mold can be finely adjusted to ensure that it is accurately installed on the machine tool.
Heavy-Duty Lifting Field
EED EDM hoisting drive devices also perform excellently in the lifting mechanisms of bridge cranes and gantry cranes that need to handle large-tonnage loads, as well as in the power systems of winches and capstans (such as in mining or port scenarios), demonstrating their strong capability to bear heavy loads.
(1) Strong Load-Carrying Capacity: EED EDM drive devices have fully considered the needs of heavy-duty working conditions during the design phase. Their powerful motors and high-strength gearboxes can easily handle the lifting and lowering of large-tonnage loads, ensuring stable and reliable operation of the equipment.
(2) Reliable Safety Guarantee: In heavy-duty lifting applications, safety is of paramount importance. EED's "double-sided safety brake" provides multiple safety redundancies, ensuring the safe braking of loads even in special circumstances and preventing accidents. This is crucial for ensuring the safety of personnel and equipment in operating environments such as mines and ports.
(3) Environmental Adaptability: Mining and port environments are usually accompanied by conditions such as humidity, dust, and corrosive gases. The high corrosion resistance of EED EDM drive devices enables them to work stably for a long time in these harsh environments, reducing failure rates and lowering maintenance costs.
Whether it is for fine operations in automated production lines or bearing heavy loads in the heavy-duty lifting field, EED EDM hoisting drive devices can provide customized solutions to meet the diverse needs of customers. Core point: Covering all industrial scenarios and providing customized solutions.
